Gibus Med Luce : Sloped Retractable Pergolas

The minimal design all weather retractable fabric roof system from Gibus. Sleek and modern in appearance to maximises visibility when retracted. Projections up to 6m and unlimited widths with product coupling. Remote control and mobile app operated.

Med Luce Price List

Med Luce Data Sheet

Features

  • Designed and manufactured by Gibus in Italy

  • Sloped waterproof black-out PVC coated polyester fabric roof protected by cover when retracted

  • Ability to partially or fully retract roof

  • Gutter integrated into front rail ensures water drain off

  • Front rail retracts with fabric roof allowing for unobstructed view

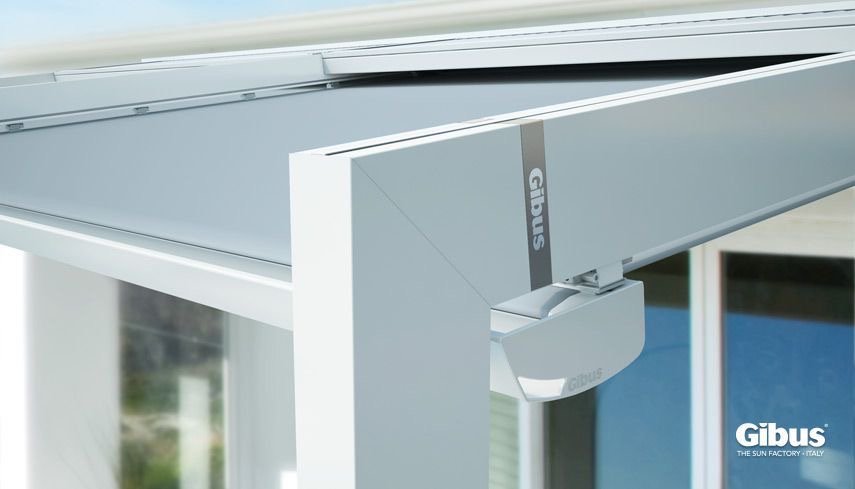

  • Supporting profile 70x130 mms in powder coated aluminium

  • Manual or remote control operated with optional sun/wind sensor

  • Integrated LED lighting options available

  • Multiple modules can be connected enabling large outdoor area protection

The Italian made Gibus Med Luce was designed to create a consistency between the indoors and outdoors; no vertical drop blinds can be integrated. Sleek and modern in design, characterised by a painted aluminium support structure, superior quality finishing with no visible screws or joins.

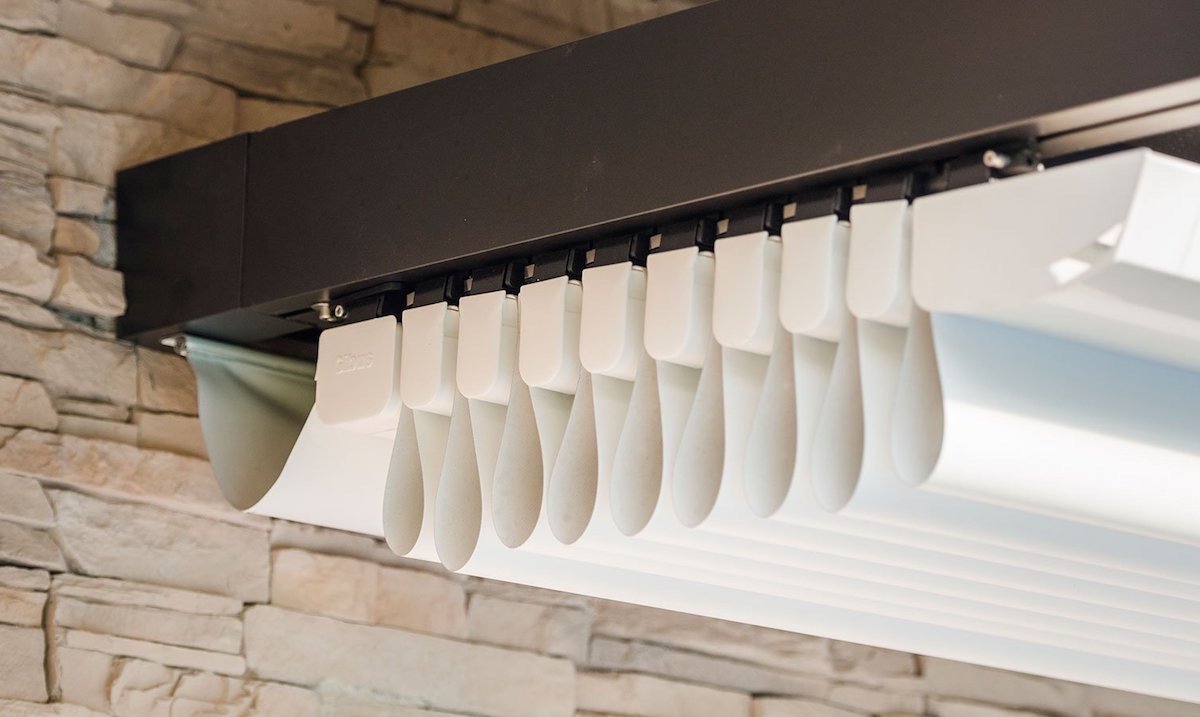

The fabric used is PVC Opatex manufactured by Giofex in Italy.  The waterproof PVC anti UV blackout cover protects against heat, frost, weather and temperature changes. The fabric is stretched and opened by section bars which slide along tracks, driven by a high resistance toothed belt that rotates on stainless steel ball bearings.

Rainwater is collected in a gutter, built into and moves with the cover, and is then discharged to the ground through two openings on the side.

Configuration is available with a minimum of two front posts or multiple modules for larger outdoor coverage.

Operation can be manual, by crank, or by the motorised Somfy system with standard activation IO-Homecontrol.  Installation of an automated sensor option is available to detect wind strength if it exceeds over 40 km/h.  The control system will automatically manage the extension and retraction of the fabric, even when you are not there.

Configuration Options

Frame Colour Options

Fabric Choices

LED Light Options

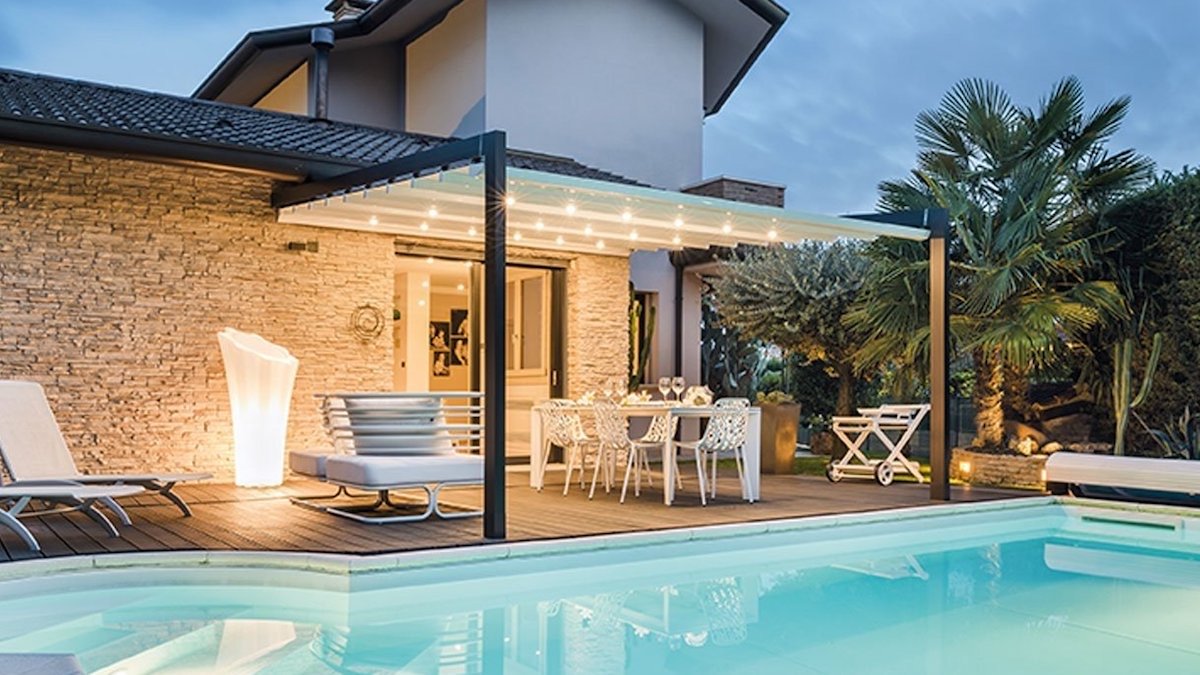

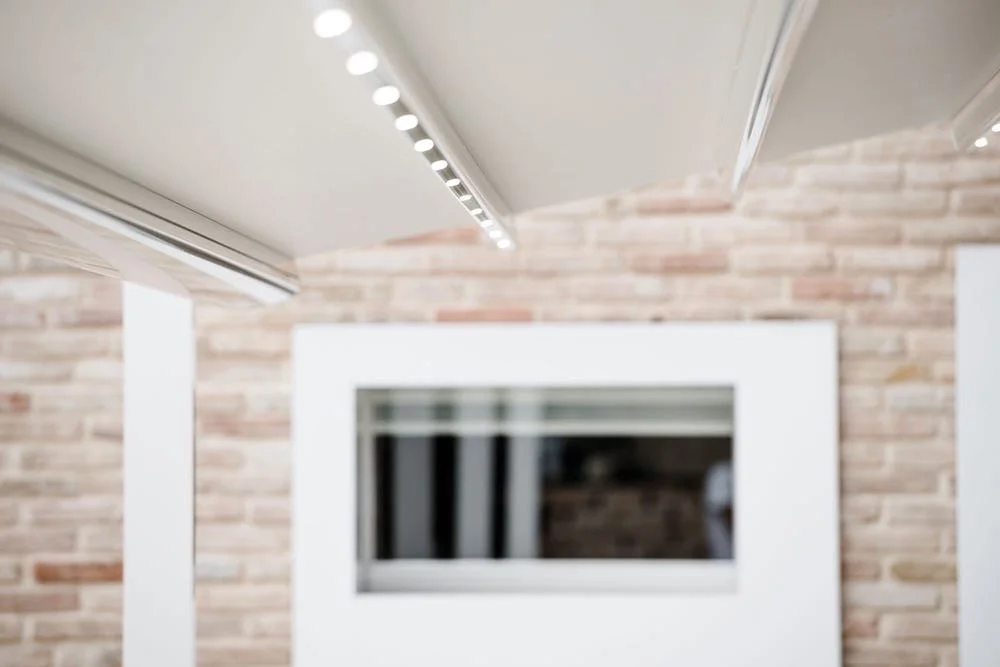

Integrated LED Spots

Rectangular LED spotlights integrated in the section bars. Arranged every 50 cm in groups of 6 per light point, each LED 0.5 Watt for a total of 3 Watt.

LED Linear with clips

Linear LED bars can be applied under the section bars with clips. Made of 12 LEDs per meter with a power of 6 Watt. They can also be installed after installation.

LED Spot Wall Bar

LED spotlights integrated in an aluminium bar that can be applied on the wall or inside the structure by means of brackets.

Med Luce Downloads

Gibus Med Luce Sales Brochure
Gibus Med Luce Installation Manual
Gibus Med Luce Technical Brochure
Gibus Med Luce CAD Drawings

Installation

OutHounds use a nationwide network of certified skilled local trade partners to manage installations. Our partners include general builders, patio door specialists, landscape gardeners and roofers, so regardless of how complex your requirements are, we can get the right team on the job. Alternatively OutHounds can provide full installation support should you decide to use your own tradesman or even install yourself. Whichever option you choose, OutHounds will always provide comprehensive post installation support during the 5 year product warranty period. With OutHounds you get a great product, a perfect installation all at an unbeatable price.

 Gibus is an Italian company and a global leader in designing and manufacturing awnings, pergolas and bioclimatic pergolas. They invest heavily in research and development, repeatedly developing new innovations in the outdoor living space.

People are at the heart of their success. With their experience, vision and passion they are able to produce premium quality tailor made pergolas and awnings, bringing the Italian-style outdoor living to thousands of homes across the world. Gibus products encompass the excellence of the ‘Made in Italy’ trademark: quality, style, creativity and authenticity.
