Gibus Med Quadra : Sloped Retractable Pergola

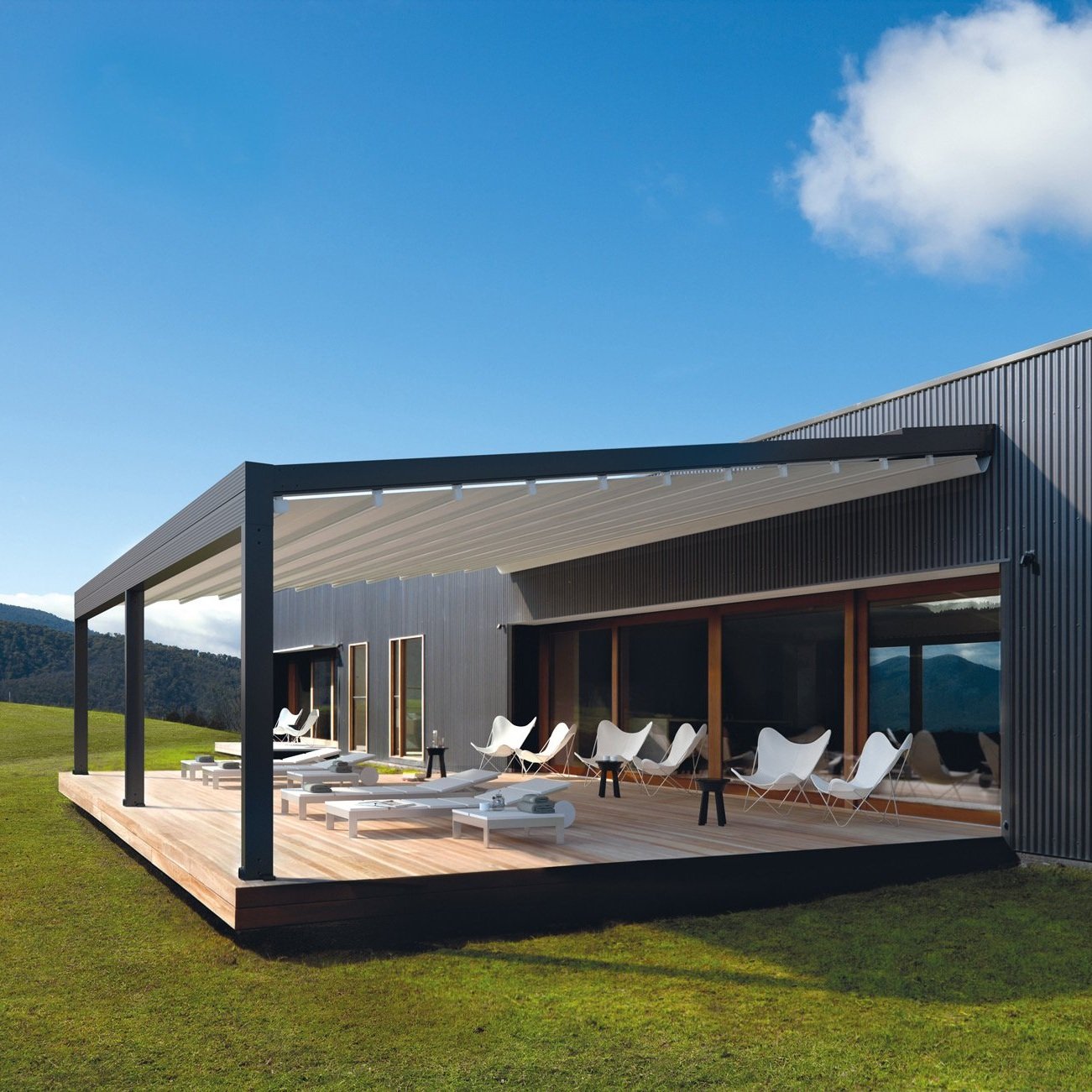

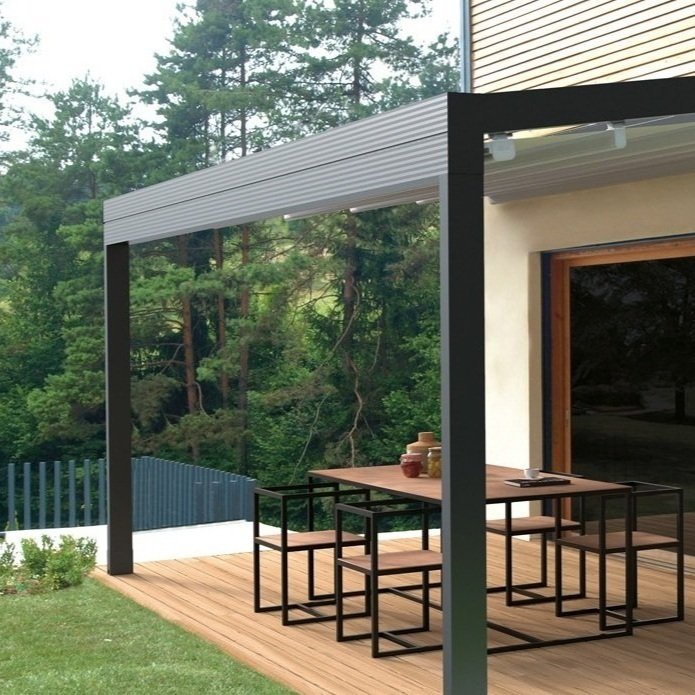

Excellent performance and classic in design to quickly and elegantly extend your outdoor living space. Slopped fabric roof supported by a seamless aluminium frame with strong refined lines. Wall or ceiling mounted and freestanding versions available.

Med Quadra Data Sheet

Med Quadra Price List

Features

  • Sloped 100% waterproof block-out PVC coated polyester fabric roof; protected by cover when retracted

  • Gutter integrated into front rail ensures water drain off through the legs down to the ground

  • Supporting profile 70x130 mms in powder coated aluminium

  • Projection up to 880 cm possible with the Quadra 165 model with larger profiles for added strength and structure

  • Sliding and folding glass doors or vertical drop shade screens can be integrated

  • Remote control operated with optional sun/wind sensor, LED lighting and heating available

  • Multiple modules can be connected enabling large outdoor area protection

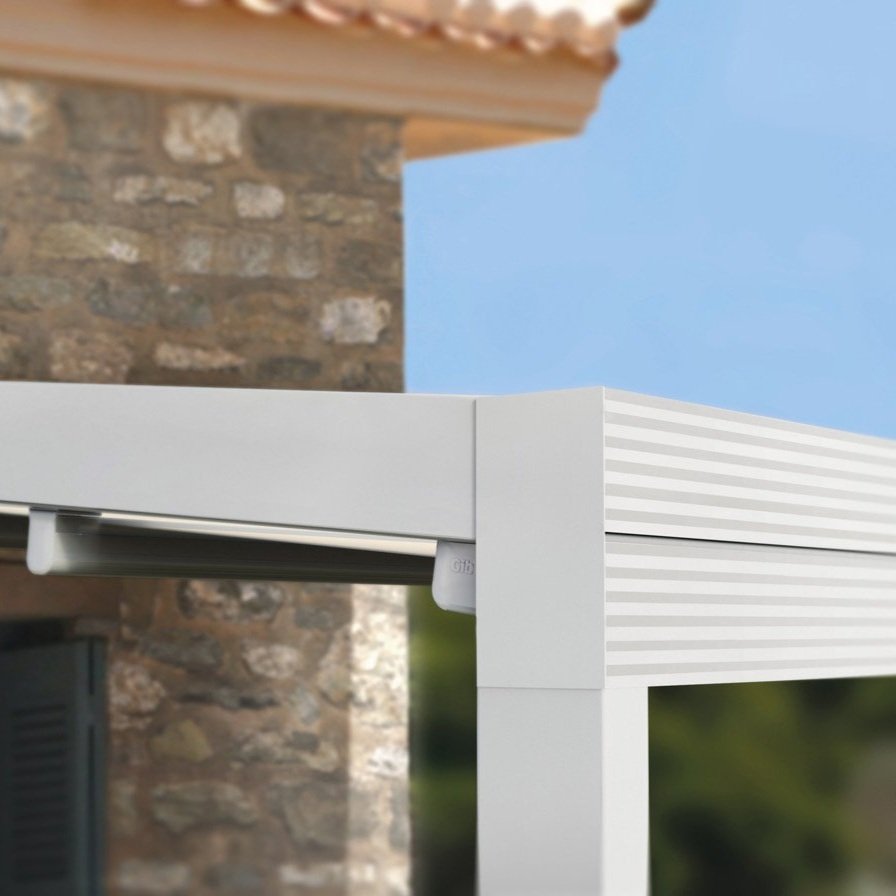

The design of the Gibus Med Quadra is characterised by the front frame with no guide arms projecting beyond the front edge. Classic and modern in style with no screws or mechanical elements visible.

The supporting structure is in painted aluminium and can be supplied with a wall or ceiling connection on one side, and resting on a bearing gutter complete with legs with ground fixing.

The fabric used is PVC Opatex manufactured by Giofex in Italy.  The waterproof PVC anti UV blackout cover protects against heat, frost, weather and temperature changes. The fabric is stretched and opened by section bars which slide along tracks, driven by a high resistance toothed belt that rotates on stainless steel ball bearings, with great carrying capacity.

Rainwater is discharged through the front gutter, down the drains incorporated in the legs and out to the ground. Installation must be with a minimum slope of between 8% and 19%, depending on the projection, to ensure proper drainage.

Glisse or Skate glass doors or vertical drop shade screens are optional extras for all year round protection. The choice of three integrated LED lighting options and heating can also be added.

Configuration is available for wall or ceiling mounted, freestanding pavilion or multiple modules for larger outdoor coverage. For large projections (up to 880cm), the Med Quadra 165 is a reworked design of the Med Quadra with larger profiles for added strength and structure.

Operation can be manual, by crank, or by the motorised Somfy system with standard activation IO-Homecontrol remote control.  Installation of an automated sensor option is available to detect wind strength if it exceeds over 40 km/h.  The control system will automatically manage the extension and retraction of the fabric, even when you are not there.

Configuration Options

Colour Options

Fabric Choices

LED Light Options

LED Spot Wall Bar

Sliding and folding wall panels made of toughened 10mm safety glass without perimeter profiles.

LED Linear with clips

Linear LED bars can be applied under the section bars with clips. Made of 12 LEDs per meter with a power of 6 Watt. They can also be installed after installation.

LED Spot Wall Bar

LED spotlights integrated in an aluminium bar that can be applied on the wall or inside the structure by means of brackets.

Side Options

Drop Blinds

Blind in self-supporting vertical box cassette with guides including ZIP system for complete wind and rain protection.

LED Linear with clips

Sliding glass walls on stainless steel tracks, in 2, 3 or 4 way solutions and up to 8 doors without perimeter profiles. Toughened safety glass from 10 to 12mm thick.

LED Spot Wall Bar

Sliding and folding wall panels made of toughened 10mm safety glass without perimeter profiles.

Installation

 OutHounds use a nationwide network of certified skilled local trade partners to manage installations. Our partners include general builders, patio door specialists, landscape gardeners and roofers, so regardless of how complex your requirements are, we can get the right team on the job. Alternatively OutHounds can provide full installation support should you decide to use your own tradesman or even install yourself. Whichever option you choose, OutHounds will always provide comprehensive post installation support during the 5 year product warranty period. With OutHounds you get a great product, a perfect installation all at an unbeatable price.
