Gibus Med Viva : Sloped Retractable Pergola

Excellent performance and classic in design to quickly and elegantly extend your outdoor living space. Slopped fabric roof supported by a seamless aluminium frame with strong refined lines. Wall or ceiling mounted and freestanding versions available.

Med Viva Price List

Med Viva Data Sheet

Features

  • Sloped waterproof block-out PVC coated polyester fabric roof protected by a cover when retracted

  • Gutter integrated into front rail ensures water drain off through the legs down to the ground

  • Supporting profile 130x70 mms complete with 130x70 mm legs with ground fixing

  • Sliding and folding glass doors or vertical drop shade screens can be integrated

  • Powder coated aluminium structure protects against corrosion and aggressive agents

  • Manual or remote control operated with optional sun/wind sensor

  • Optional integrated LED lighting and heating available

  • Multiple modules can be connected enabling large outdoor area protection

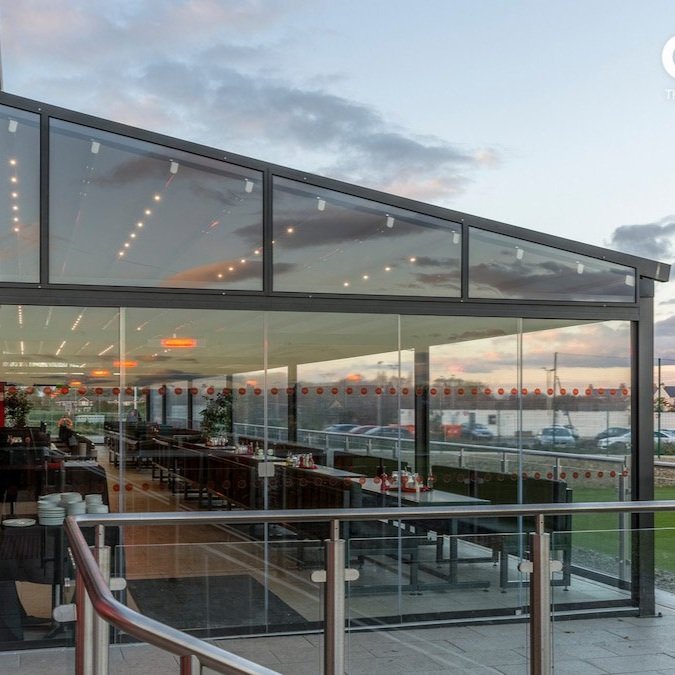

The Italian made Gibus Med Viva was designed to create comfort for time spent outdoors. Sleek and modern in design, characterised by a solid painted aluminium support structure, superior quality finishing with no visible screws or joins.

The fabric used is PVC Opatex manufactured by Giofex in Italy.  The waterproof PVC anti UV blackout cover protects against heat, frost, weather and temperature changes. The fabric is stretched and opened by section bars which slide along tracks, driven by a high resistance toothed belt that rotates on stainless steel ball bearings, with great carrying capacity.

Rainwater is discharged through the integrated front gutter, down the drains incorporated in the and out to the ground. Installation must be with a minimum slope of between 8% and 19%, depending on the projection, to ensure proper drainage.

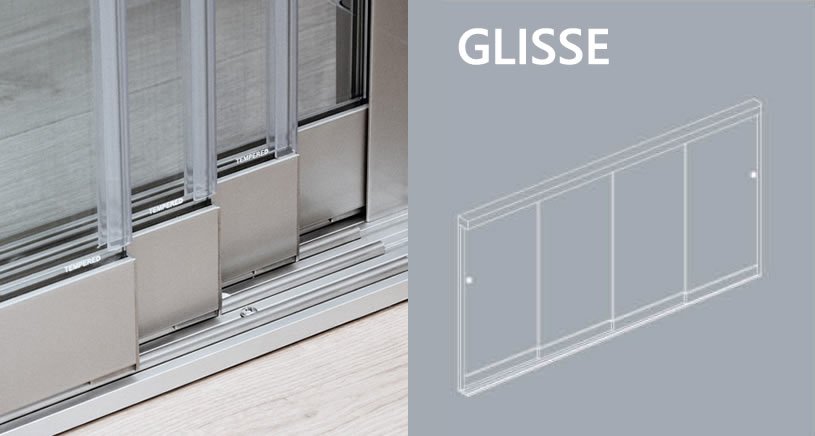

Glisse or Skate glass doors or vertical drop shade screens are optional extras for all year round protection. The choice of three integrated LED lighting options and heating can also be added.

Configuration is available with a minimum of two front posts or multiple modules for larger outdoor coverage.

Operation can be manual, by crank, or by the motorised Somfy system with standard activation IO-Homecontrol remote control.  Installation of an automated sensor option is available to detect wind strength if it exceeds over 40 km/h.  The control system will automatically manage the extension and retraction of the fabric, even when you are not there.

Configuration Options

Colour Options

Fabric Choices

LED Light Options

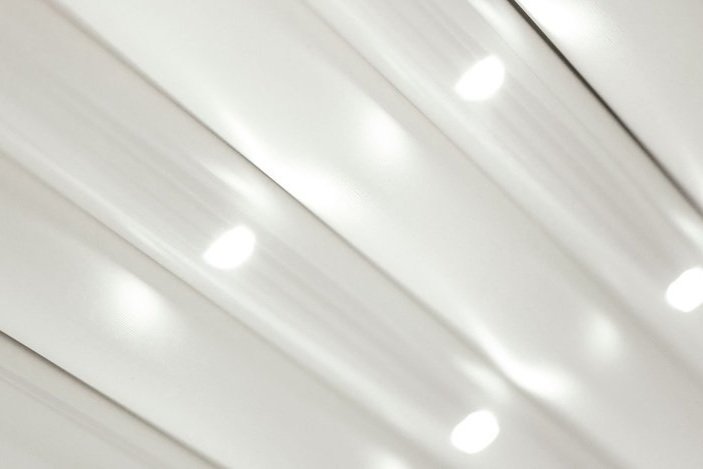

Integrated LED Spots

Rectangular LED spotlights integrated in the section bars. Arranged every 50 cm in groups of 6 per light point, each LED 0.5 Watt for a total of 3 Watt.

LED Linear with clips

Linear LED bars can be applied under the section bars with clips. Made of 12 LEDs per meter with a power of 6 Watt. They can also be installed after installation.

LED Spot Wall Bar

LED spotlights integrated in an aluminium bar that can be applied on the wall or inside the structure by means of brackets.

LED Light Options

Drop Blinds

Blind in self-supporting vertical box cassette with guides including ZIP system for complete wind and rain protection.

LED Linear with clips

Sliding glass walls on stainless steel tracks, in 2, 3 or 4 way solutions and up to 8 doors without perimeter profiles. Toughened safety glass from 10 to 12mm thick.

LED Spot Wall Bar

Sliding and folding wall panels made of toughened 10mm safety glass without perimeter profiles.

Med Viva Downloads

Gibus Med Viva Sales Brochure
Gibus Med Viva Installation Manual
Gibus Med Viva Technical Brochure
Gibus Med Viva CAD Drawings

Installation

OutHounds use a nationwide network of certified skilled local trade partners to manage installations. Our partners include general builders, patio door specialists, landscape gardeners and roofers, so regardless of how complex your requirements are, we can get the right team on the job. Alternatively OutHounds can provide full installation support should you decide to use your own tradesman or even install yourself. Whichever option you choose, OutHounds will always provide comprehensive post installation support during the 5 year product warranty period. With OutHounds you get a great product, a perfect installation all at an unbeatable price.

 Gibus is an Italian company and a global leader in designing and manufacturing awnings, pergolas and bioclimatic pergolas. They invest heavily in research and development, repeatedly developing new innovations in the outdoor living space.

People are at the heart of their success. With their experience, vision and passion they are able to produce premium quality tailor made pergolas and awnings, bringing the Italian-style outdoor living to thousands of homes across the world. Gibus products encompass the excellence of the ‘Made in Italy’ trademark: quality, style, creativity and authenticity.
