Gibus Med Joy : Bioclimatic Pergola with Rotating Aluminium Blades
The Med Joy is the new slim, narrow bioclimatic pergola from the Gibus range. Perfect for terraces and small gardens. With motorised adjustable aluminium louvre blades to allow complete control of the internal environment. Optional fitting of vertical shade screens or glass walls, heaters and LED lighting.
Med Joy Price List
Med Joy Data Sheet
Features
Louvre blades rotate to any position within a 0-120° range to allow full or partial light or to release or capture heat
Powder painted aluminium structure formed of 13x13 cm square upright posts, 25 cm perimeter frame with 240 cm height
Patented design allows the blades to remain in contact with the frame throughout the entire motion, eliminating gaps and water leaks
Down pipes integrated into the frame posts allows water to drain off the blades, into the gutter and out through the posts
Offers a complete outdoor room solution with optional sliding glass doors, outdoor drop blinds, lighting & heating
Wide range of combinations allowing total freedom of configuration
Movement of the blades operated by remove control
2 year manufacturers warranty - 5 year available

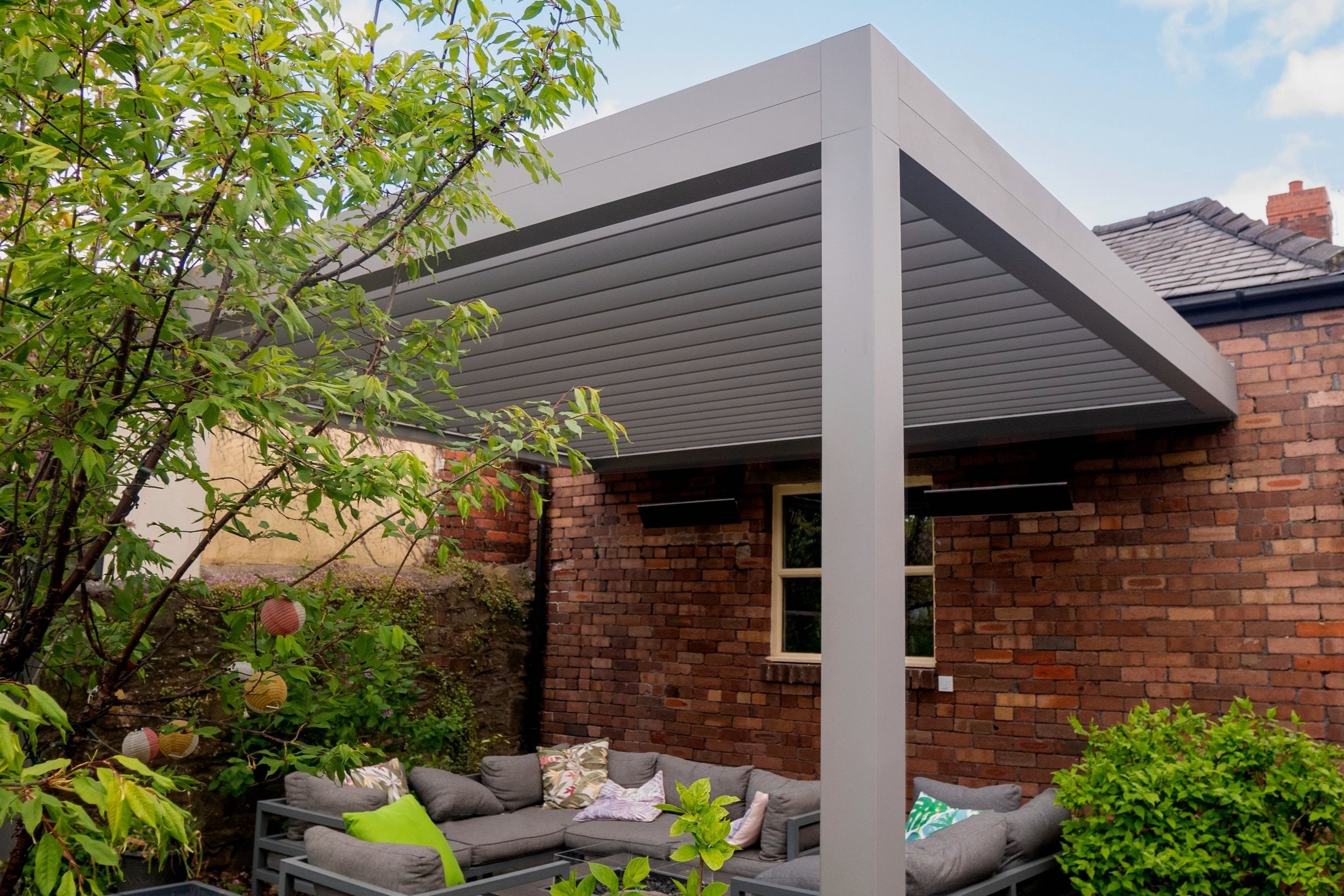

New to the Gibus range of bioclimatic pergolas, the Med Joy is characterised by its slimline and simplistic design to enhance any small garden or terrace.
The aluminium louver blades have motorised movement and can rotate from the horizontal closed position, which guarantees excellent seal from rain, to the open position of varying degrees ranging from 0-120. Sun exposure on the external side of the blades generates heat, which induces natural air movement from the bottom upwards, returning a refreshing breeze to the environment.
The patented Side Seal between the blades and along the perimeter, together with their particular shape, ensures rainwater effortlessly flows to the ground through the integrated drainpipes. Each blade, along its entire length, has a seal that the adjacent blade rests on when closed, guaranteeing water and air cannot get into the structure.

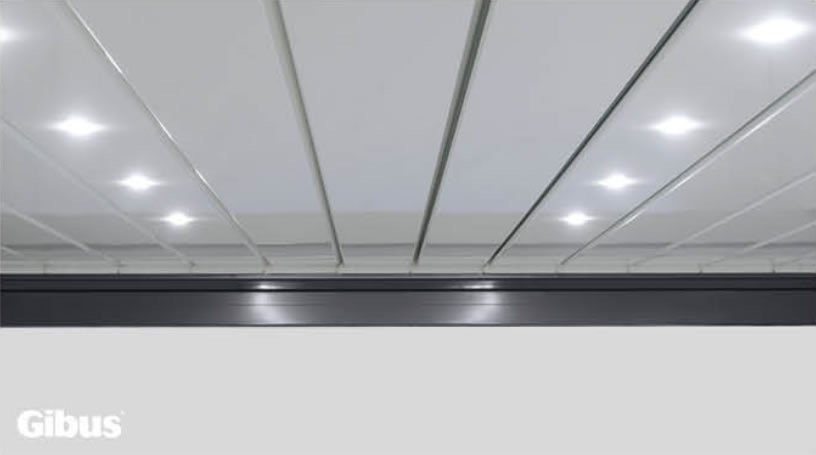

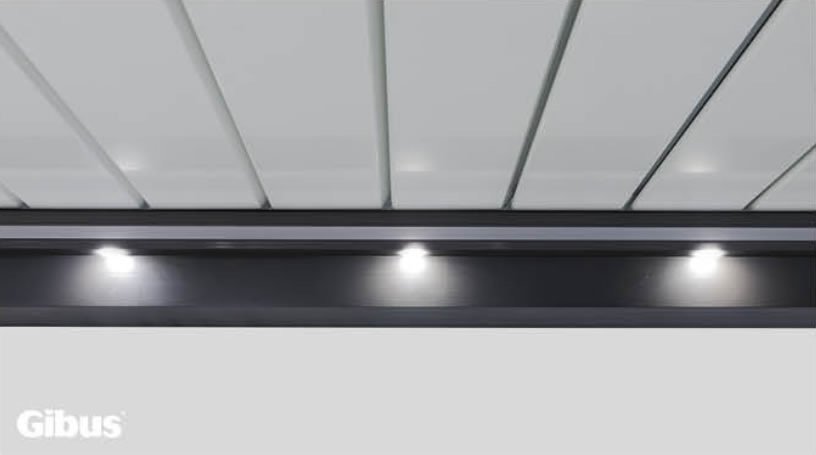

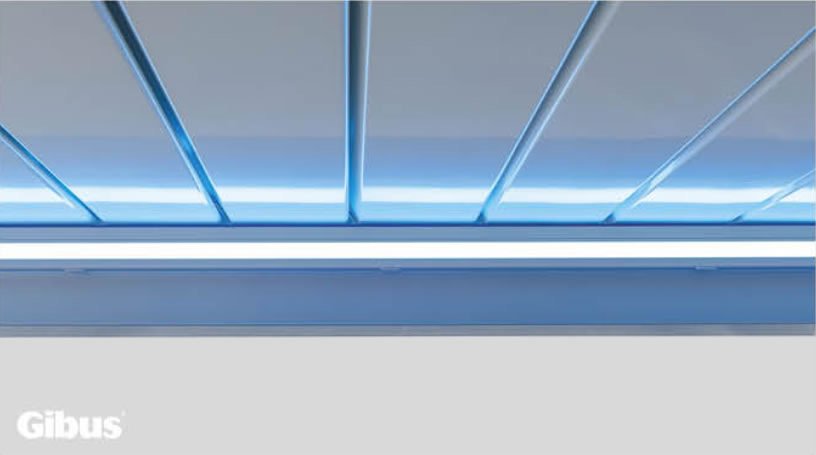

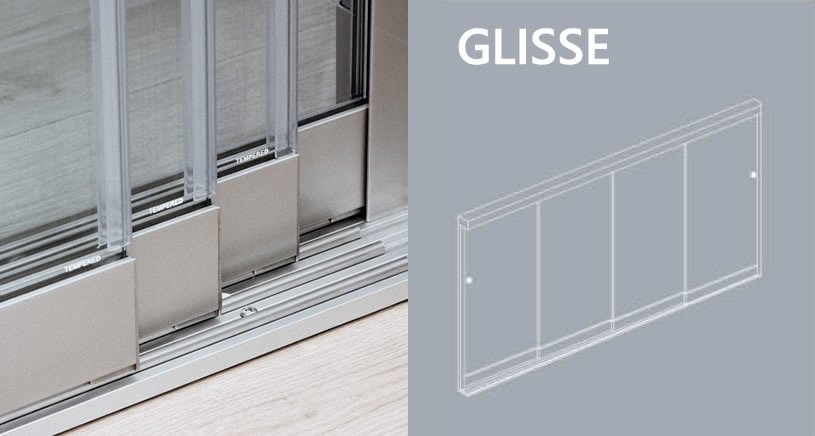

The Med Joy is available with a range of optional extras including sliding glass doors, outdoor drop blinds, three unique configurations of LED lighting and electric heaters.
Configuration is available in the Freestanding Island, Frontal and Lateral leaning or Wall Mounted versions. Unlimited coupling options available to create coverage for larger outdoor seating areas.
Movement of the louver blades is operated by remote control using Somfy IO-Homecontrol system.
Configuration Options




Frame & Blades Colours
